Medium FlickrFLAME 316L Installer Pack

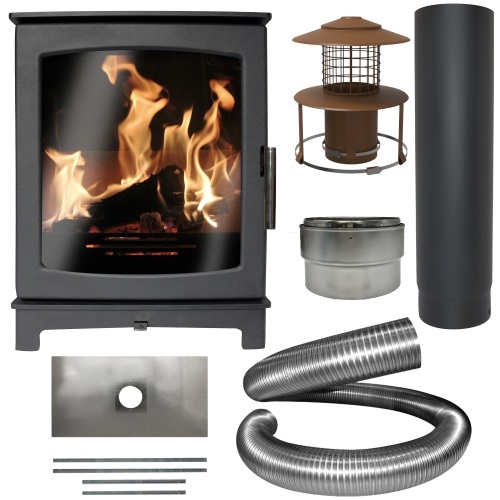

What’s included:

• 1 x Mi-Fire Medium FlickrFLAME Stove,
• 1 x 10m of Ø 125mm 316L Flexible Flue liner,
• 1 x Reg.Plate (F) – 125-150mm – 900×495,
• 1 x VIT-Smooth 500mm Pipe- Ø 125mm,
• 1 x Adaptor to S/W (MA) Economy – Ø 125mm,
• 1 x Mi-FLEX Pot Hanging Cowl (Terracotta) – Ø 125mm

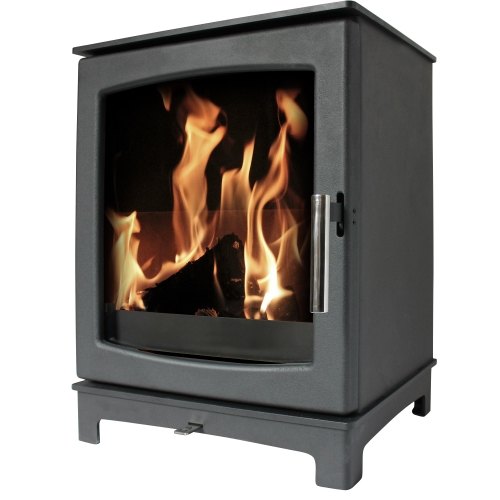

Wood burning stove, 5kW – ECODesign 2022, Smoke Control Area Exempt, 85.1% Efficient, A+ Energy Rating, 13% Dust. Designed and assembled in the UK, these stoves are the most efficient of their size in the UK, together with the lowest emissions (Dust Particles) available today.

Born and Bred in the Lake District, this British-designed wood-burning stove is Eco Design ready ensuring the highest standards of efficiency and cleanliness. The slender cast iron door frame and large window provide a stunning view of the fire, and the powerful airwash system works to continuously clear any combustion deposits.

Construction

Key features include 5mm and 8mm steel seam welded stove body construction and cast iron door. The firebox is lined with 30mm vermiculite panels. Polished stainless steel handle with black as an option and air control.

Variable Air Flow System

The single stainless steel air slider allows you to easily control the combustion of your stove.

Tertiary Air System

The powerful tertiary system is central to the stoves efficiency and cleanliness. Pre-heated air is drawn into the fire chamber and injected into the path of the gases produced during primary combustion; this re-ignites the gases resulting in a significantly cleaner and more efficient fire.

Easy Installation

All Mi-Fires stoves are equipped with an installer friendly 125mm outlet allowing you to flue the stove from the top or rear. Discreet levelling screws hidden in the legs ensure that the stove can be secure no matter how uneven the hearth surface is. The stove is suitable for installation on a 12mm decorative hearth.
